Vertical diamond drill for concrete and asphalt with tripod, 550 rpm, 3300 W

SKU: 4062859160386·Manufacturer Code: 10062192
£554€640
Warranty:2 years
Manufacturer code: 10062192
The MSW concrete drill allows you to reliably drill holes in hard materials such as concrete, masonry, or asphalt. Using a drill stand, it is possible to drill even large holes with a diameter of up to 255 mm. The device has a power of 3300 W and a speed of 550 rpm. These are ideal specifications for core drilling. The drill bit size is adjusted depending on the material; for example, holes with a diameter of up to 180 mm can be drilled in concrete. Thanks to the guide rail on the stand, precise results are achieved to a depth of ≤500 mm. Three power levels ensure optimal results. It is best to use the largest-diameter drill bits at the lowest speed. The drill is water-cooled. The connection is integrated directly into the device. This reduces drill bit wear, minimizes machine maintenance, and ensures a longer service life. To service the carbon brushes, simply remove the protective cover. Drill bits of various diameters are securely held in the device using a chuck. A diamond drill bit can be used to drill in reinforced concrete, cement, masonry, asphalt, and natural stone. The 3.5 m power cord ensures maximum freedom of movement.

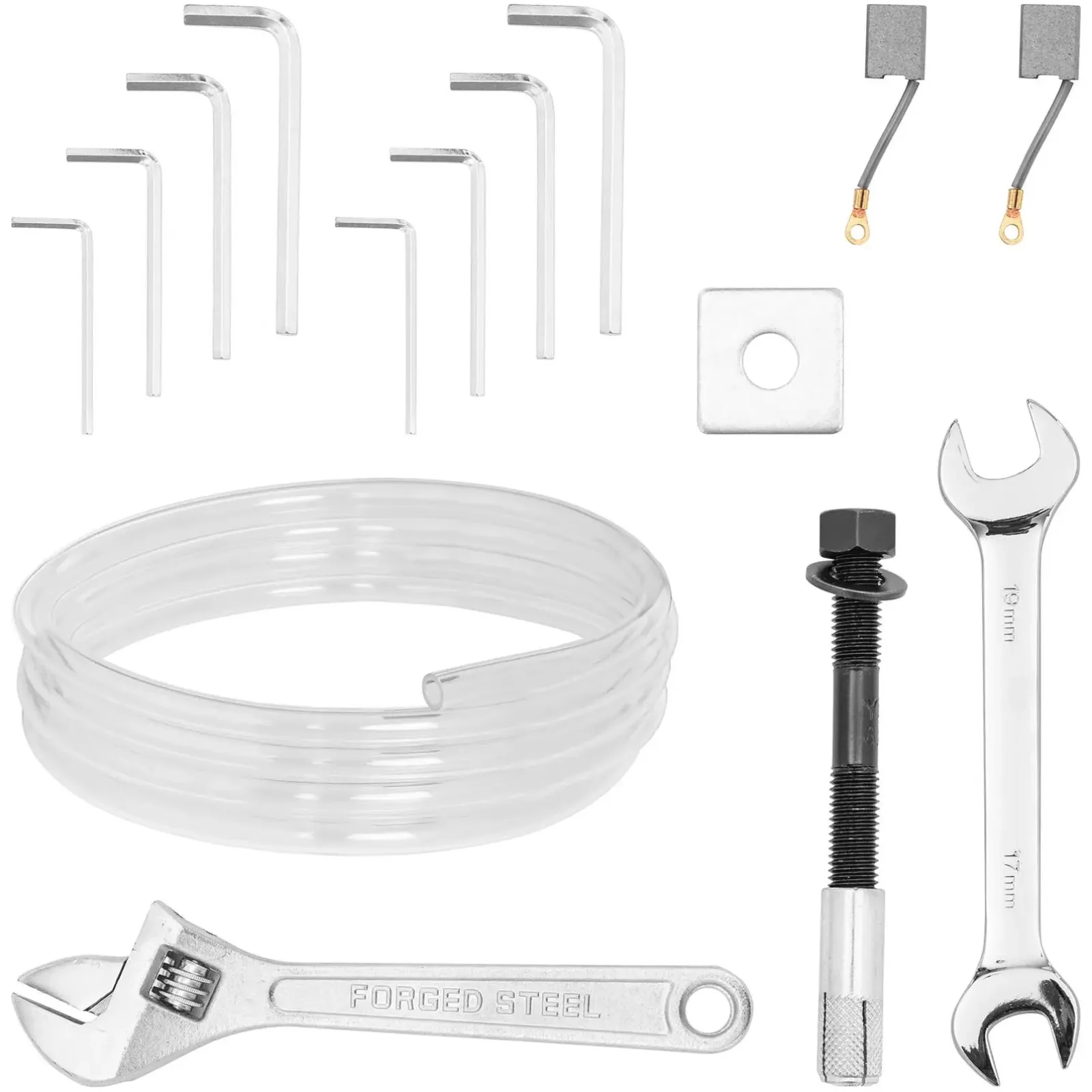

Included:
  • - Concrete drill

Features

  • Powerful 3300 W motor with carbon brushes,
  • The drill stand with guide rail enables clean core drilling up to a diameter of 255 mm,

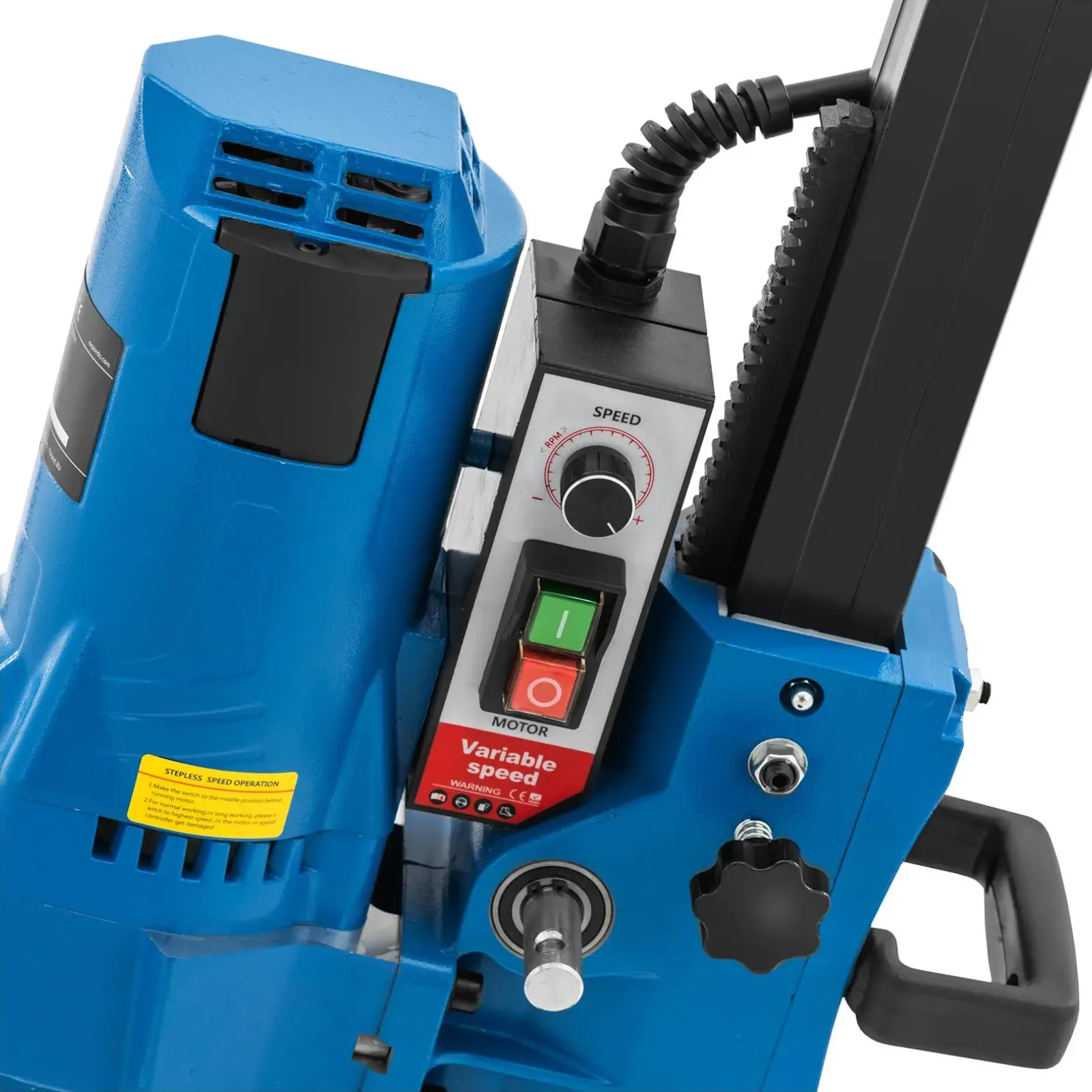

  • Efficiency depending on the gear, speed up to 0–550 rpm,

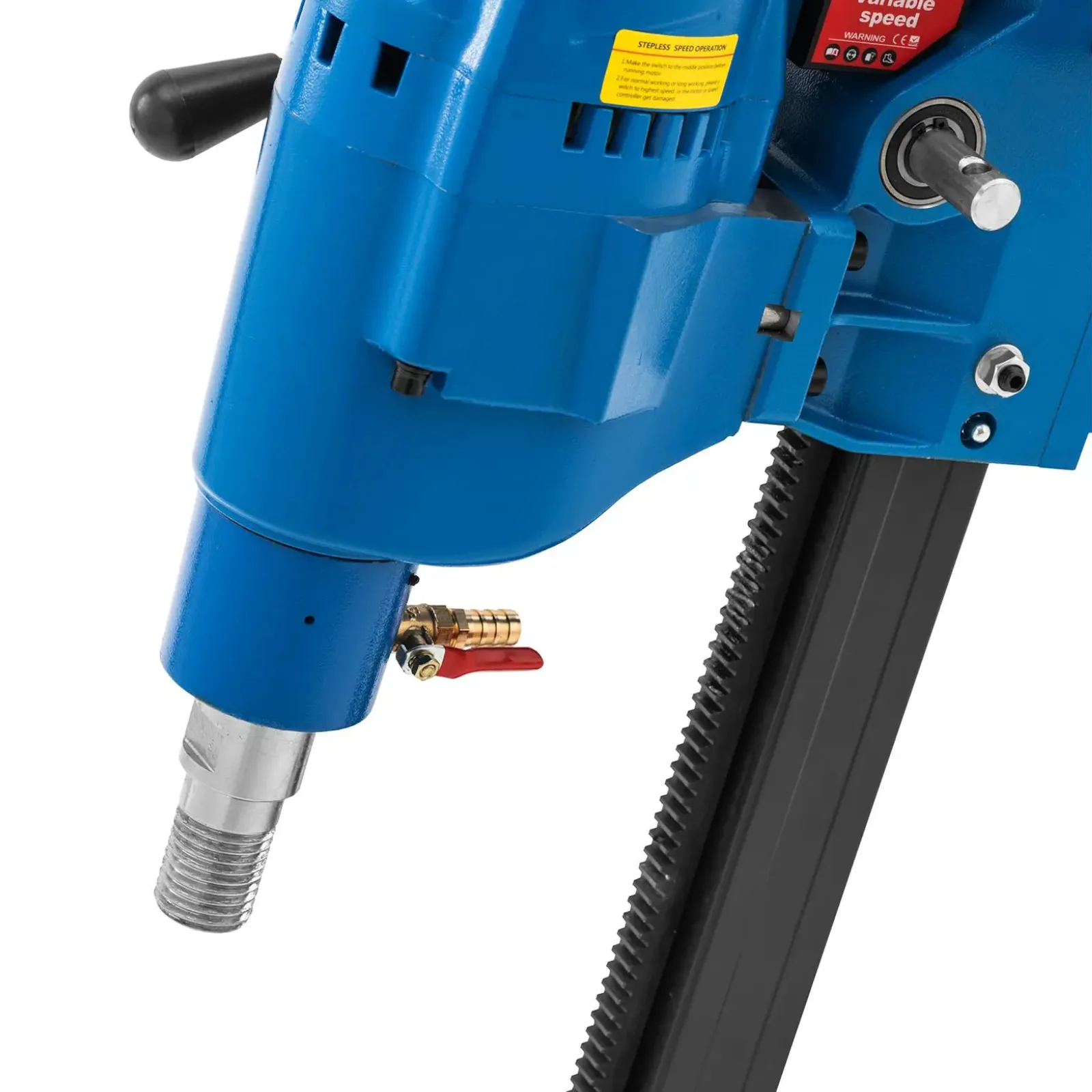

  • For dry and wet drilling,
  • The stable cast aluminum construction can withstand even heavy loads.

Who is this for?

Workshops & repair shops
Household use

The product is currently available!

Technical Specifications 17

Product condition
New
Material
Aluminum, Plastic, Copper, Iron
Voltage [V]
230
Current [A]
17
Power [W]
3300
Drilling diameter in gears 1/2/3 [mm]
155
Guide rail adjustment [mm]
≤500
Water hose connection diameter [mm]
10
Maximum drilling diameter [mm]
255
Water connection diameter ["]
0.4
Core drill chuck diameter ['']
1 1/4 - 7 UNC and G1/2
Core drilling, dry and wet methods
Yes
Cooling hose length
3.5 m
Dimensions (LxWxH)
50 x 25 x 93 cm
Weight
24.1 kg

Reviews

No reviews yet

Be the first to share your experience

Click a star to get started
  • Within 24 hourswe read every single review
  • Personal replyto every story you share
  • Spotlight placementfor the first reviewer

Product Details 5

Shipping Weight26.52 kg
Manufacturer Code10062192
EAN/GTIN4062859160386
Estimated Delivery5–7 working days
Ships from🇵🇱 Poland

Key features 1

Concrete drill
