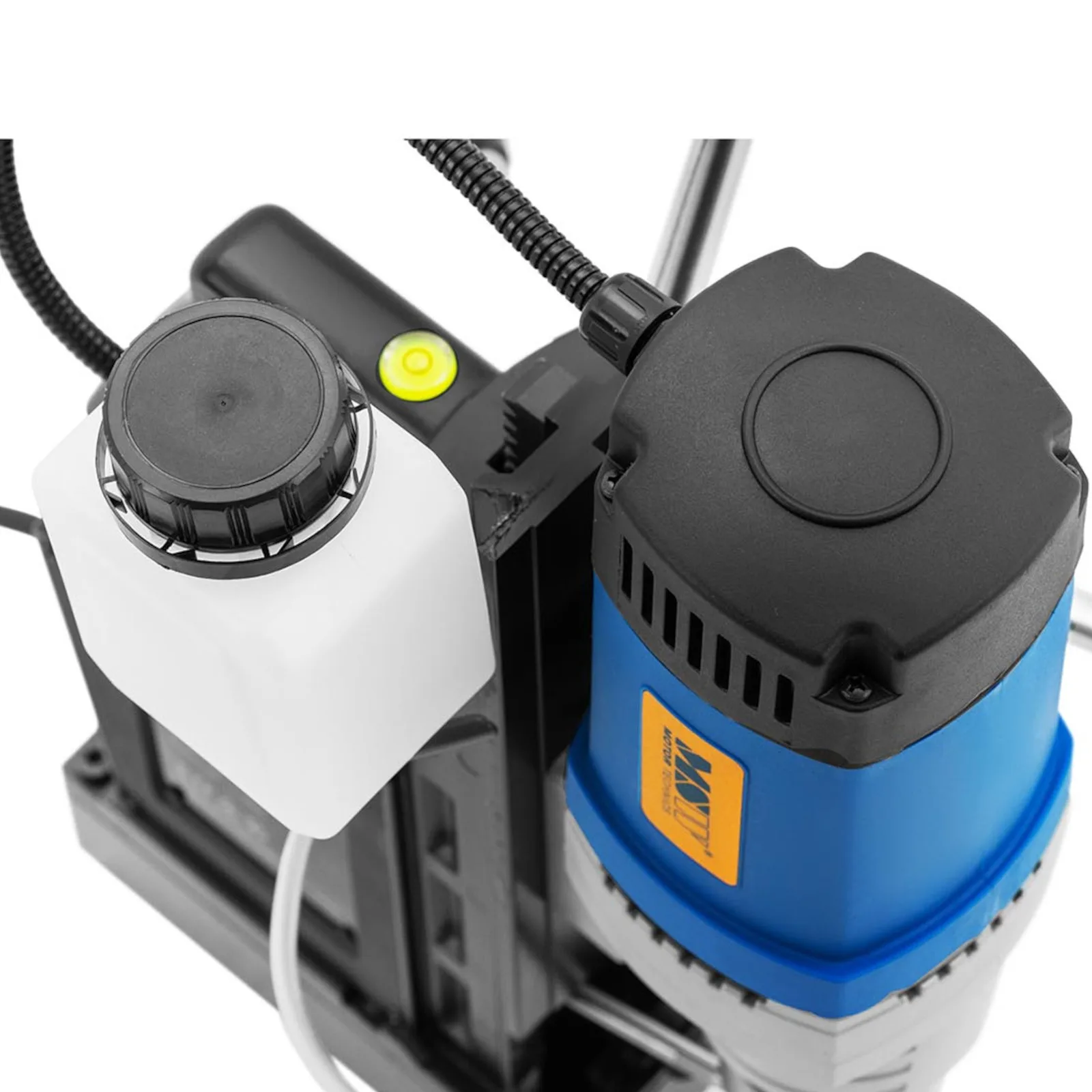

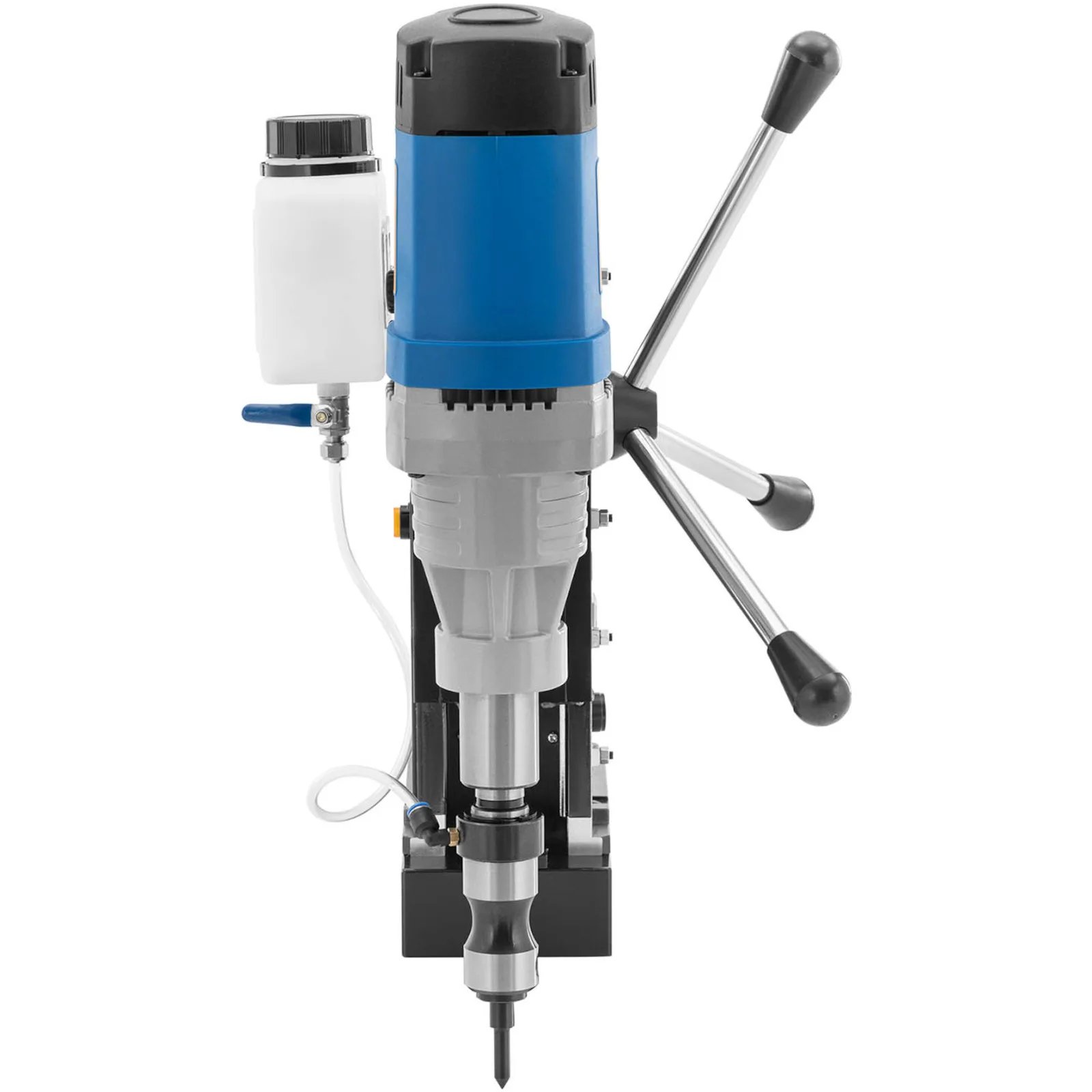

Magnetic drill with laser, 19 mm Weldon chuck, 395 rpm, 1680 W
£775€895
Warranty:2 years
Manufacturer code: 10062295
The MSW magnetic drill is suitable for drilling, countersinking, tapping, and ring drilling—ideal for industrial and commercial metalworking. It doesn’t matter whether you’re working vertically or horizontally. A powerful electromagnetic base securely holds the machine in the desired position. The machine has a power output of 1680 W. You can adjust the speed continuously up to 395 rpm. For thread cutting, you can reverse the rotation direction. This reliably prevents damage to the freshly cut thread when unscrewing. All settings are made on a convenient control panel. The drilling depth is adjusted using a three-arm knob. Thanks to the large stroke range from 0 to 165 mm, you can work with exceptional flexibility. The integrated spirit level allows you to assess the drill bit’s position. The drill also features an integrated coolant reservoir. For simple tasks, fill the 0.3 L container with tap water. For more demanding drilling applications, use special coolant or drilling oil. This extends the service life of the drill bits and minimizes maintenance. The maximum holding force is 18,000 N—equivalent to a weight of nearly 2 tons—and the magnet also allows you to work on thinner materials. The included safety strap provides additional protection. For example, in the event of a power failure, it prevents injury or damage to the workpiece. The device is also equipped with a RCD magnetic switch. If the drive is accidentally turned on after a power failure or disconnection from the mains, the motor will still not start. Operation is only possible again after the magnetic switch has been activated. The set includes: a drill chuck for shanks up to 16 mm in diameter, a coolant reservoir, spare carbon brushes, an MK3 chuck / 19 mm Weldon shank, fuses, all assembly tools, and many other useful components.
Included:
The MSW magnetic drill is suitable for drilling, countersinking, tapping, and ring drilling—ideal for industrial and commercial metalworking. It doesn’t matter whether you’re working vertically or horizontally. A powerful electromagnetic base securely holds the machine in the desired position. The machine has a power output of 1680 W. You can adjust the speed continuously up to 395 rpm. For thread cutting, you can reverse the rotation direction. This reliably prevents damage to the freshly cut thread when unscrewing. All settings are made on a convenient control panel. The drilling depth is adjusted using a three-arm knob. Thanks to the large stroke range from 0 to 165 mm, you can work with exceptional flexibility. The integrated spirit level allows you to assess the drill bit’s position. The drill also features an integrated coolant reservoir. For simple tasks, fill the 0.3 L container with tap water. For more demanding drilling applications, use special coolant or drilling oil. This extends the service life of the drill bits and minimizes maintenance. The maximum holding force is 18,000 N—equivalent to a weight of nearly 2 tons—and the magnet also allows you to work on thinner materials. The included safety strap provides additional protection. For example, in the event of a power failure, it prevents injury or damage to the workpiece. The device is also equipped with a RCD magnetic switch. If the drive is accidentally turned on after a power failure or disconnection from the mains, the motor will still not start. Operation is only possible again after the magnetic switch has been activated. The set includes: a drill chuck for shanks up to 16 mm in diameter, a coolant reservoir, spare carbon brushes, an MK3 chuck / 19 mm Weldon shank, fuses, all assembly tools, and many other useful components.
Included:

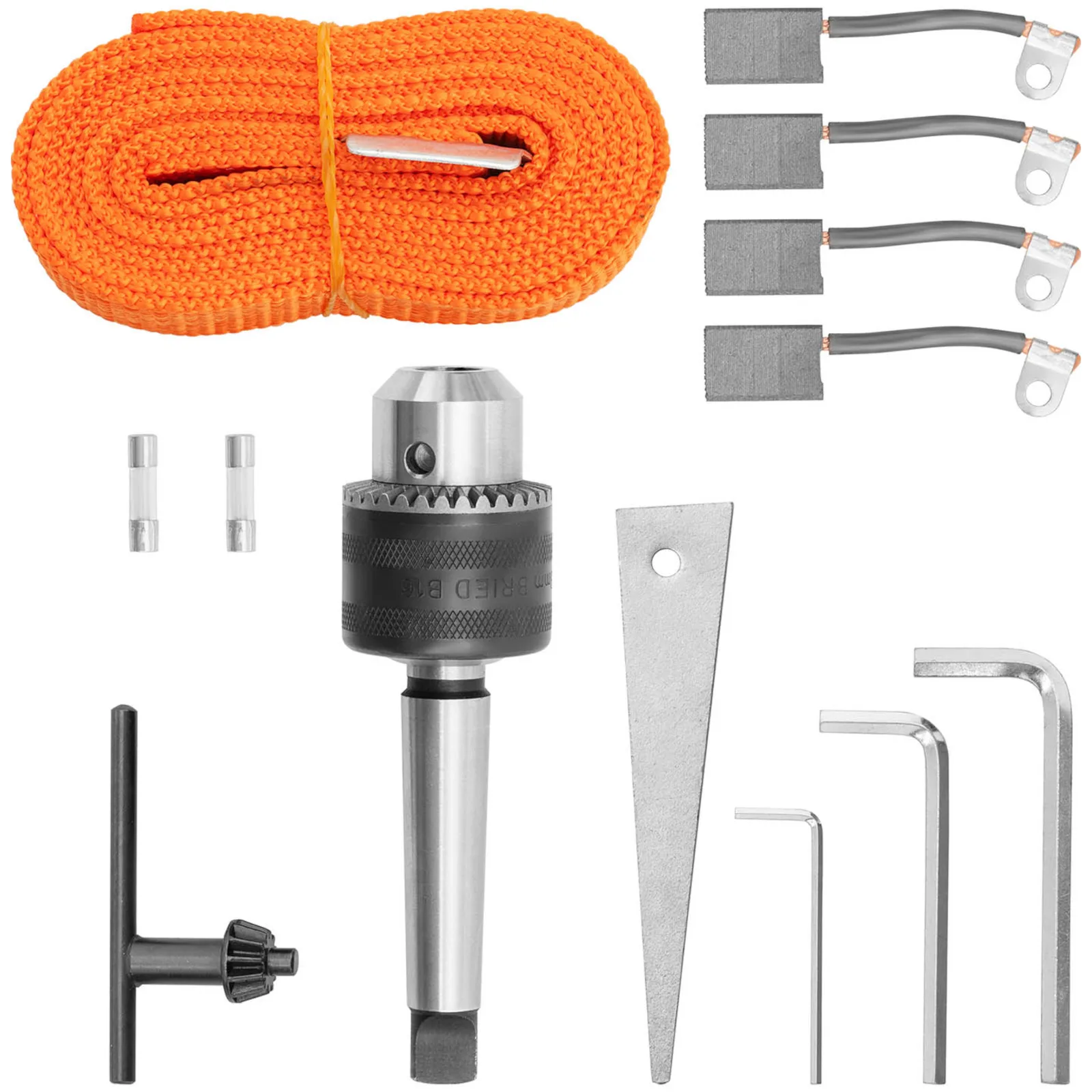

- - MSW-MD60-LASER PRO magnetic drill:
- - 3 rotary chucks
- - 2 fuses
- - 2 carbon brushes
- - MK3 chuck / 19 mm Weldon shank
- - Keyed drill chuck (B18 / 3 - 16 mm)
- - Drill chuck
- - Drive wedge
- - Allen wrench
- - Coolant reservoir
- - Coolant hose
- - Mounting accessories
- - Laser mount
- - Positioning pin
- - Carrying case
Features
- 1680 W motor,

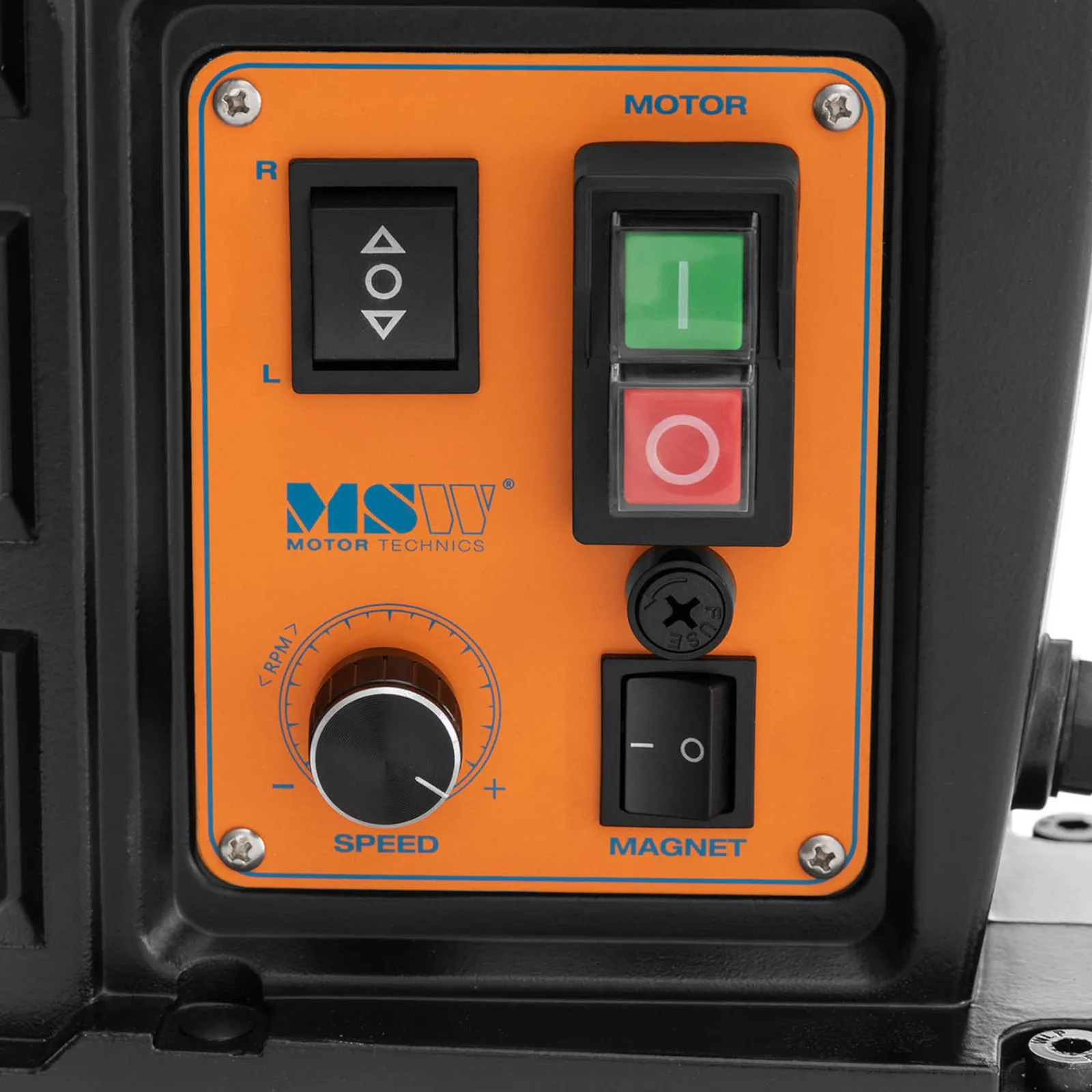

- Control panel with stepless speed and rotation direction adjustment, as well as other controls,
- Integrated coolant tank and laser for precision drilling,
- RCD magnetic circuit breaker, safety belt, easily accessible fuse, and two-stage safety switch,
- Extensive accessory kit and carrying Case.
Who is this for?
Workshops & repair shops
Household use
The product or the selected variation is currently unavailable.
Notify me when this is back in stock
We'll email you the moment this product returns to our warehouse.
Technical Specifications 23
- Catalog number
- 10062295
- Product condition
- New
- Model
- MSW-MD60-LASER PRO
- Material
- Aluminum, Aluminum alloy, Plastic, Steel, Magnesium alloy
- Core drill diameter [mm]
- 60
- Drill diameter [mm]
- 28
- Built-in spirit level
- Yes
- Cooling tank tube length [mm]
- 500
- Maximum holding force of the electromagnet [N]
- 18000
- Maximum drilling depth with a core drill [mm]
- 50
- Guide rail adjustment [mm]
- 0-165
- Safety strap included
- Yes
- Power cord [m]
- 2,25
- Tapping diameter
- M25
- Voltage [V]
- 230
Reviews
No reviews yet
Be the first to share your experience
Click a star to get started- Within 24 hourswe read every single review
- Personal replyto every story you share
- Spotlight placementfor the first reviewer
Product Details 5
Shipping Weight24.3 kg
Manufacturer Code10062295
EAN/GTIN4062859183644
Estimated Delivery5–7 working days
Ships from🇵🇱 Poland
Key features 5
1680 W motor,
Control panel with stepless speed and rotation direction adjustment, as well as other controls,
Integrated coolant tank and laser for precision drilling,
RCD magnetic circuit breaker, safety belt, easily accessible fuse, and two-stage safety switch,
Extensive accessory kit and carrying Case.
